45° Double Miter Cut Off Saw, Double Cut Saw



45° Double Miter Cut Off Saw, Double Cut Saw

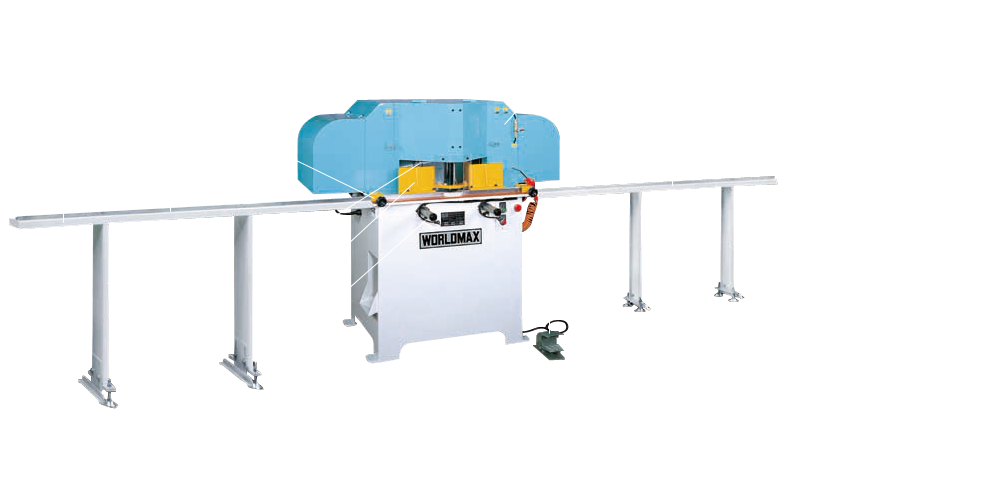

  • DB-350

    DB-350

  • DB-455

    DB-455



Double Cut Saw Description

2 Cut Off Saw WxH:

100x100 mm
80x120 mm
70x150 mm
60x180 mm

Double Cut Saw Feature
  • Double sawblades cut simultaneously providing 2/3 time saving than conventional cutting.
  • Four sides clamping by air cylinders assures secure clamping, deformation free and accurate angle of cut.
  • Four lubrication nozzles gives outstanding lubrication performance. Lubricant flushes only when cutting is performing for extending service life of sawblade.

Standardly equipped with 1 set of 240x15cm conveyor table.

Product Specifications
ItemDB-350DB-455
Motor 2HP*2 3HP*2
Table Area 870* 260mm 870* 290mm
Table Height 800mm 800mm
Max. Width of Cut 100mm 130mm
Max. Height of Cut 180mm 250mm
Saw Balde 45 Degree 45 Degree
Cutting Angle 1"x14"x2 pcs 1"x18"x2 pcs

Infeed & Outfee Roller: 8’ x 8’
